Sign In screen​

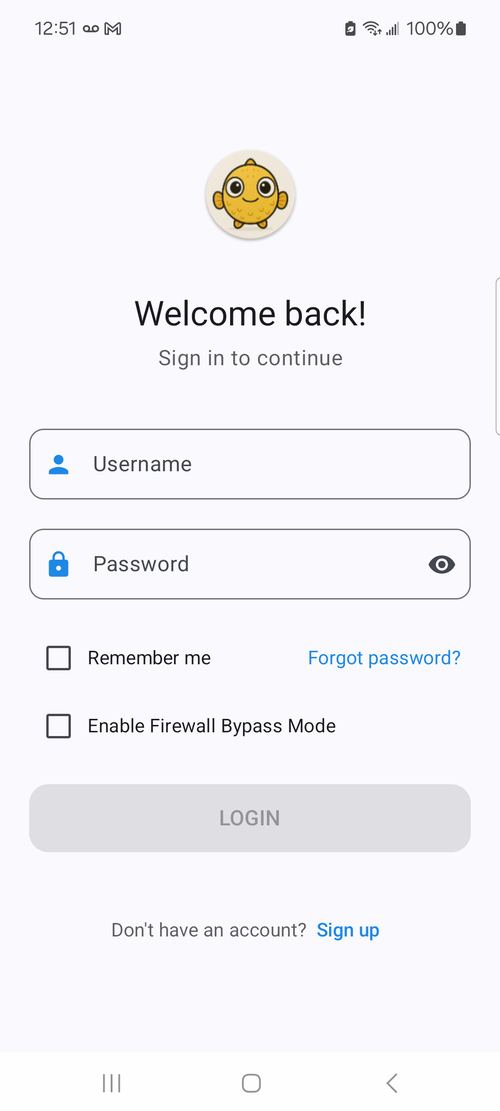

The front screen of the Mudfish app is the sign-in screen.

picture 0

  • If you check the "Remember me" checkbox, the login information will be stored internally so that you will be automatically logged in the next time.

  • If you check "Enable Firewall Bypass Mode", the Mudfish app will attempt to connect to the network by bypassing the firewall. Users who have difficulty connecting to Mudfish due to network firewalls can use this feature.

Main screen​

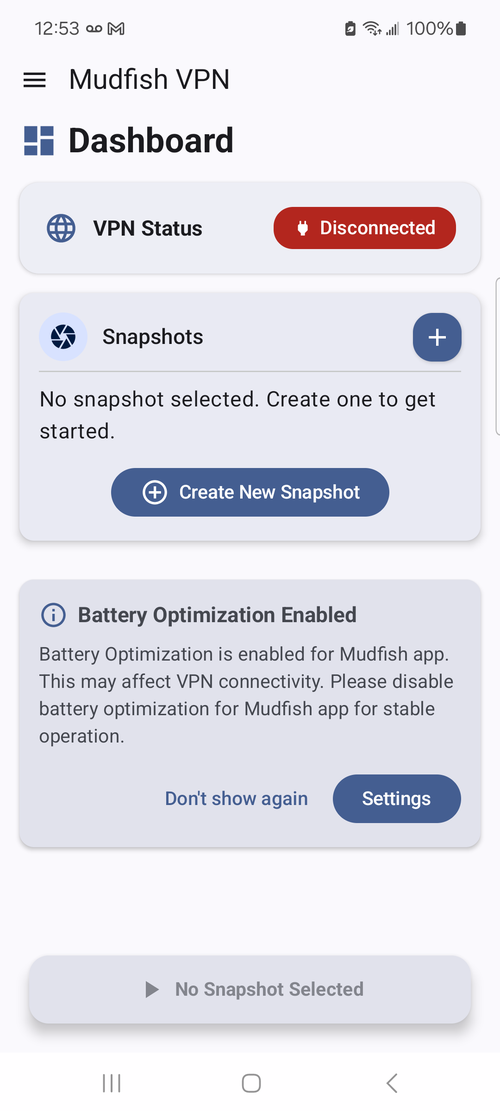

This is the screen you see after logging in. The Mudfish app operates based on "Snapshots" by default. A "Snapshot" is a collection of configuration files that can be stored in multiple instances, and each snapshot can have different settings.

picture 1

  • The "Battery Optimization Enabled" message indicates that the Mudfish app is operating in battery optimization mode. This means that the Android system may forcibly terminate the Mudfish app under certain circumstances.

Top left​

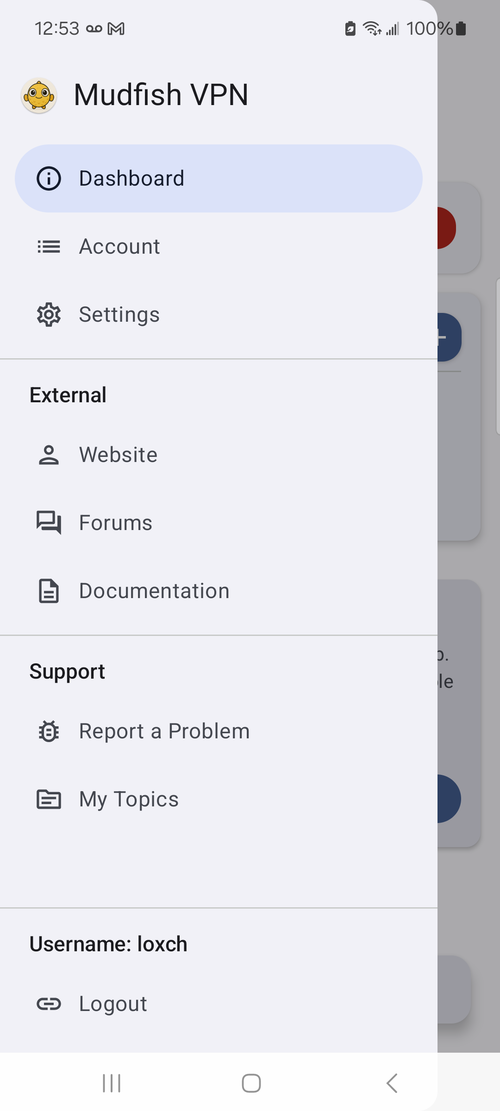

When you touch , you will see the basic menu.

picture 2

You have the following menus:

  • Account

    Screen that shows account-related information.

  • Settings

    Screen where you can change the settings of the Mudfish app.

  • External

    • Website

      Menu that goes to the Mudfish website.

    • Forums

      Menu that goes to the Mudfish forums.

    • Documentation

      Menu that goes to the Mudfish documentation.

  • Support

    • Report a problem

      Used when you want to send a problem report to Mudfish.

    • My topics

      Screen that shows the topics you wrote.

  • Log out

Account screen​

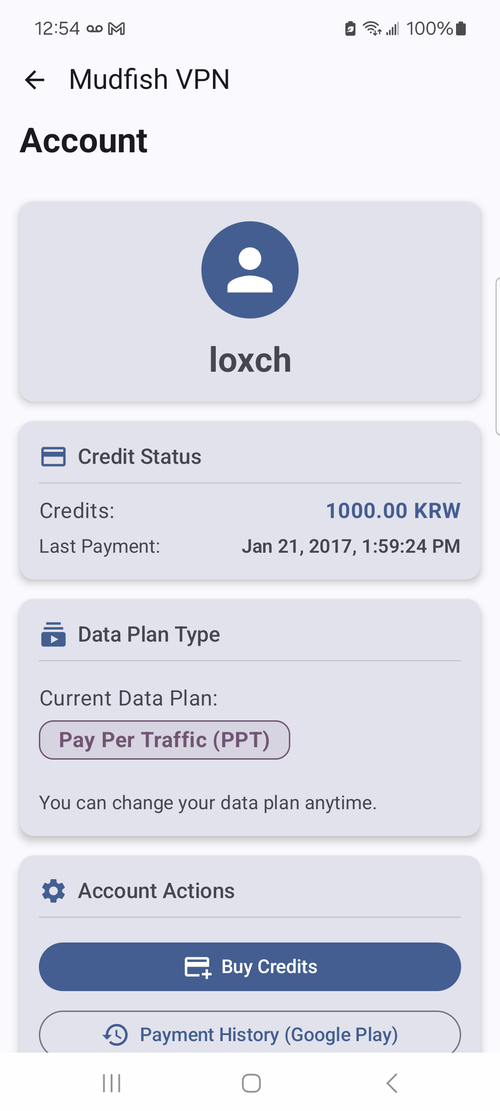

Screen that shows account-related information.

picture 3

The following menus are available:

  • Buy credits

  • Payment history (Google Play)

  • Payment history (Mudfish)

  • Refresh user information

  • Change data plan

Snapshot screen​

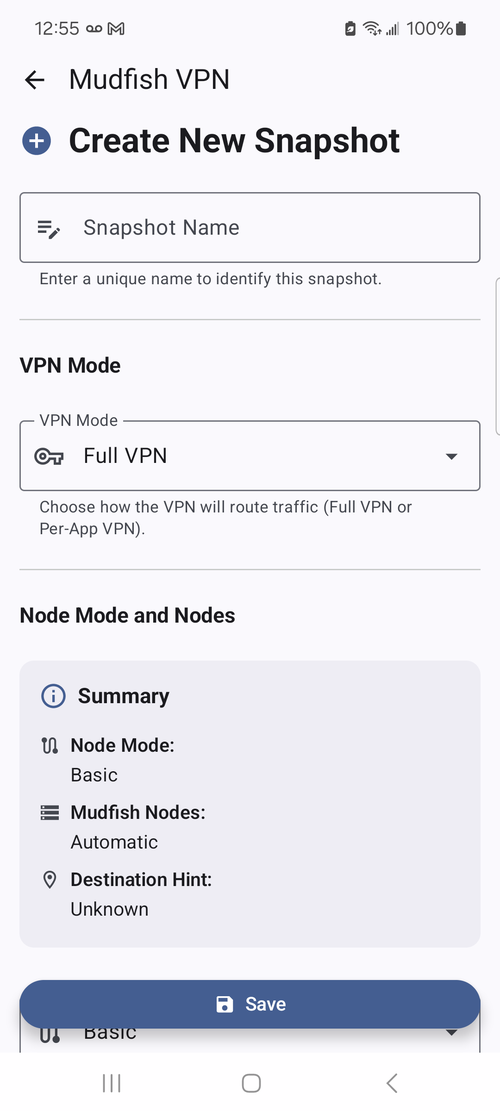

The snapshot screen is where you can change the connection configuration of the Mudfish app.

picture 4

Using this screen, you can configure which Mudfish relay server to use, how to configure the connection method, etc.

Settings screen​

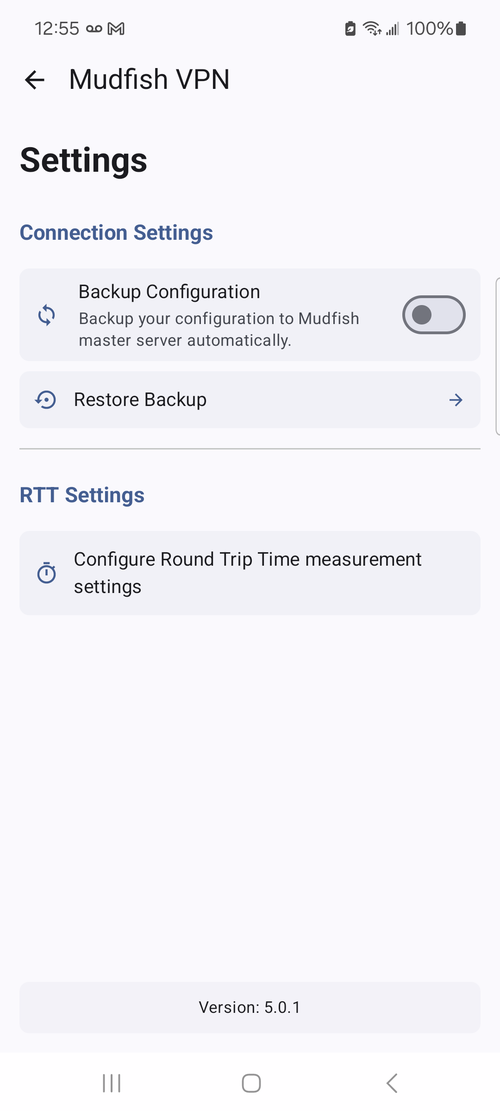

Menu where you can change the settings of the Mudfish app.

picture 5

Currently, there are the following menus:

  • Connection settings

    • Backup Configuration

      Automatically backs up Mudfish app settings to the Mudfish central server. This backup is maintained for up to 30 days.

    • Restore Backup

      Can be used when you want to restore previously backed up items.

  • RTT settings

    You can change settings for RTT (Round Trip Time) measurements that the Mudfish app performs on Mudfish nodes. There are multiple options:

    • Protocol Configuration

    • RTT Testing Configuration

    • Timing Configuration

    • Actions

      • Data Operations

        • Sync RTT

        • Reset RTT

          This is to reset values of the RTT measurements. If you feel that RTT measurements are not accurate, you can use this option to reset the values.

      • Settings Operations

        • Default

          This is to reset the RTT settings to the default values.
